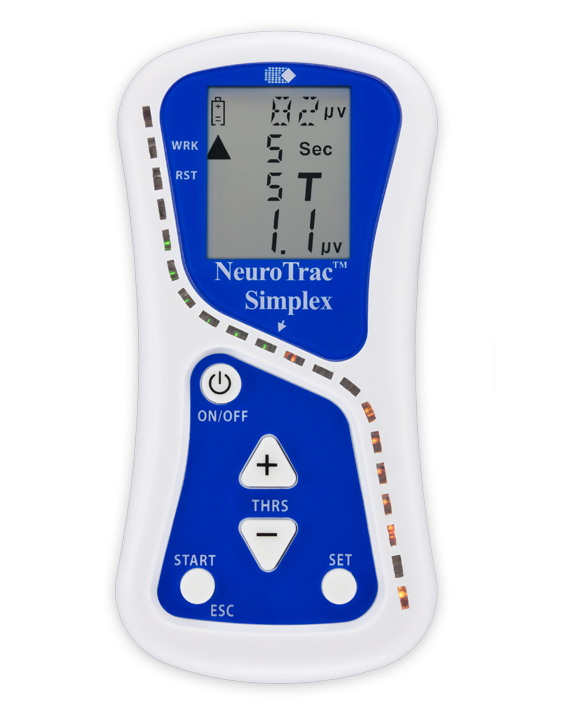

NeuroTrac® Simplex

Category:

Product Description

    • Suitable for diagnosing, monitoring and treating a wide range of muscle problems
    • Single Channel EMG unit
    • Optional multilingual computer database system
    • Structured protocols for consistency of patient progress reports (software)
    • Used as a EMG biofeedback training aid or diagnostic tool
    • Measures EMG from 0.2μV to 2000μV Accurately
    • Designed for a wide range of physiotherapy applications such as incontinence, shoulder and neck pains, patello femoral pain, repetitive strain injury, stroke plus much more
    • Used as a learning tool for both patients and therapists with emphasis on improving rehabilitation techniques
    • Produces and prints comprehensive patient progress reports of work/rest averages, onset contraction and muscle release times, peak values, work/rest average deviations (with optional software)
    • Up to 10 meters of wireless (Bluetooth) connection for NeuroTrac Software
    • Ability to lock the unit
    • Records EMG statistics
    • User friendly
    • Compact, light and reliable
    • Easy to use optional software available
    • Low cost high quality and very accurate


  • EMG

    • The package includes PC Software. Up to 10 m of wireless connection (Bluetooth).
    • Single Channel Digital EMG Unit.
    • Accurate Range: 0.2μV to 2000μV.
    • Sensitivity: 0.1μV RMS.
    • LEDs display EMG level clearly and easily.
    • LCD displays numerical EMG reading and work/rest countdown.
    • Selectable band pass filter to filter out heart rate.
    • Work / Rest periods: 2 to 99 seconds.
    • Number of Trials: 1-99
    • User friendly.

    Battery: PP3 9V. Low battery indication at 7.4 volts +/- 0.2 volts, automatic shut off when voltage dropps below the low indication. Replace the batteries immediately! The device goes off automatically when not in use (energy saving): for example when in settings and no key pressed over 10 minute.

    Expected average battery set life [of standard 800 mAh, alkaline]:40 hours

    Environmental Conditions for use:
    +5 to +40 degrees Centigrade. 15-93% Humidity.

    Environmental conditions for storage & transport:
    -25 to +70degrees Centigrade. 15-93% Humidity.

    Physical Dimensions: Length 128 mm, Width 64 mm, Depth 28 mm

    Weight: 0.1Kg (without batteries).

  • Skin electrodes: round 25 mm

    electrodes-vs2
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 25 mm dia – round
    • Re-order code: VS25 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: round 30 mm

    electrodes-vs30
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 30 mm dia – round
    • Re-order code: VS30 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: round 50 mm

    electrodes-vs50
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 50 mm dia – round
    • Re-order code: VS50 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use, as alternative to popular square shape of 50x50mm
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: 50 x 50 mm

    electrodes-vs5050
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 50 x 50 mm – rectangular
    • Re-order code: VS5050 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use, this size is the most popular
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: 90 x 40 mm

    electrodes-vs9040
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 90 x 40 mm – rectangular
    • Re-order code: VS9040 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: general use, slightly bigger alternative for popular 50 x 50 mm size, good for larger muscles, for TENS you may feel less irritation when using bigger electrodes on the back
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: 90 x 50 mm

    electrodes-vs9050
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 90 x 50 mm – rectangular
    • Re-order code: VS9050 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: large muscles or TENS placing on the lower back
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Skin electrodes: 100 x 50 mm

    electrodes-vs10050
    Reusable Long-term electrodes for TENS, NMS (STIM), EMG Biofeedback

    • Size: 100 x 50 mm – rectangular
    • Re-order code: VS10050 – we don’t sell to general public, please obtain from your local distributor
    • Recommended for: large muscles or TENS placing on the lower back
    • For single Patient use only!

    Materials & Specifications

    • Soft white cloth backing, suitable for most areas of the body
    • High quality hydrogel and conductive carbon film
    • Water based gel makes it skin friendly and allergy free (exclusions possible)
    • Do not use alcohol wipes or other liquids to clean the front or gel side of the electrodes!
    • Latex free
    • CE marked

    Lead wire – dual conductor

    wire-lw102-7169
    Dual conductor lead wire for TENS, NMS (STIM), EMG Biofeedback

    • Re-order code: LW103 – we don’t sell to general public, please obtain from your local distributor
    • cable length: 1.25 mm
    • Improved features: thicker, more flexible cable jacket.

    Materials & Specifications

    • Inner wire – copper
    • Outer jacket and plugs – PVC
    • Latex free

    Lead wire – REF

    wire-lw102-7050
    Single conductor Reference lead wire for EMG Biofeedback

    • Re-order code: LW102 – we don’t sell to general public, please obtain from your local distributor
    • cable length: 1.00 mm
    • Improved features: thicker, more flexible cable jacket.

    Materials & Specifications

    • Inner wire – copper
    • Outer jacket and plugs – PVC
    • Latex free

    Vaginal Probe– PR-02A-2

    vaginal probe
    Vaginal electrode for Pelvic floor electrical stimulation or EMG Biofeedback

    • Terminations: for 2mm diameter pins
    • Dimensions: length 76 mm, diameter 28 mm
    • Weight: 30g
    • cable length: 20cm
    • CE Marked

    Materials & Specifications

    • Medical Grade Plastic
    • Gold plated electrodes to eliminate nickel intolerance
    • Latex free
